The extrusion line is newly developed based on European technique of new type pipe production line.
-It’s suitable for PE , PP and other polyolefine pipes high-speed extrusion. -The extrusion line has many advantages, such as, nest outline , highly automatic control . stable performance. -It’s greatly reputed by the customers due to “European performance and domestic. -TURUI-series high-efficiency single screw extrude has 8 standard sizes ; 30. 45. 65.75. 90,105. 120. 150MM,and the L/D ratio is 30; 1D-37; 1D Effective length. -All the equipments can be controlled by the PLC/PCC smart modular, further, the automatic control ,real-time data record and closed-loop control are realized. -The advantaged are high output , high adatability for different raw material, highly stable good-quality extrusion and so on

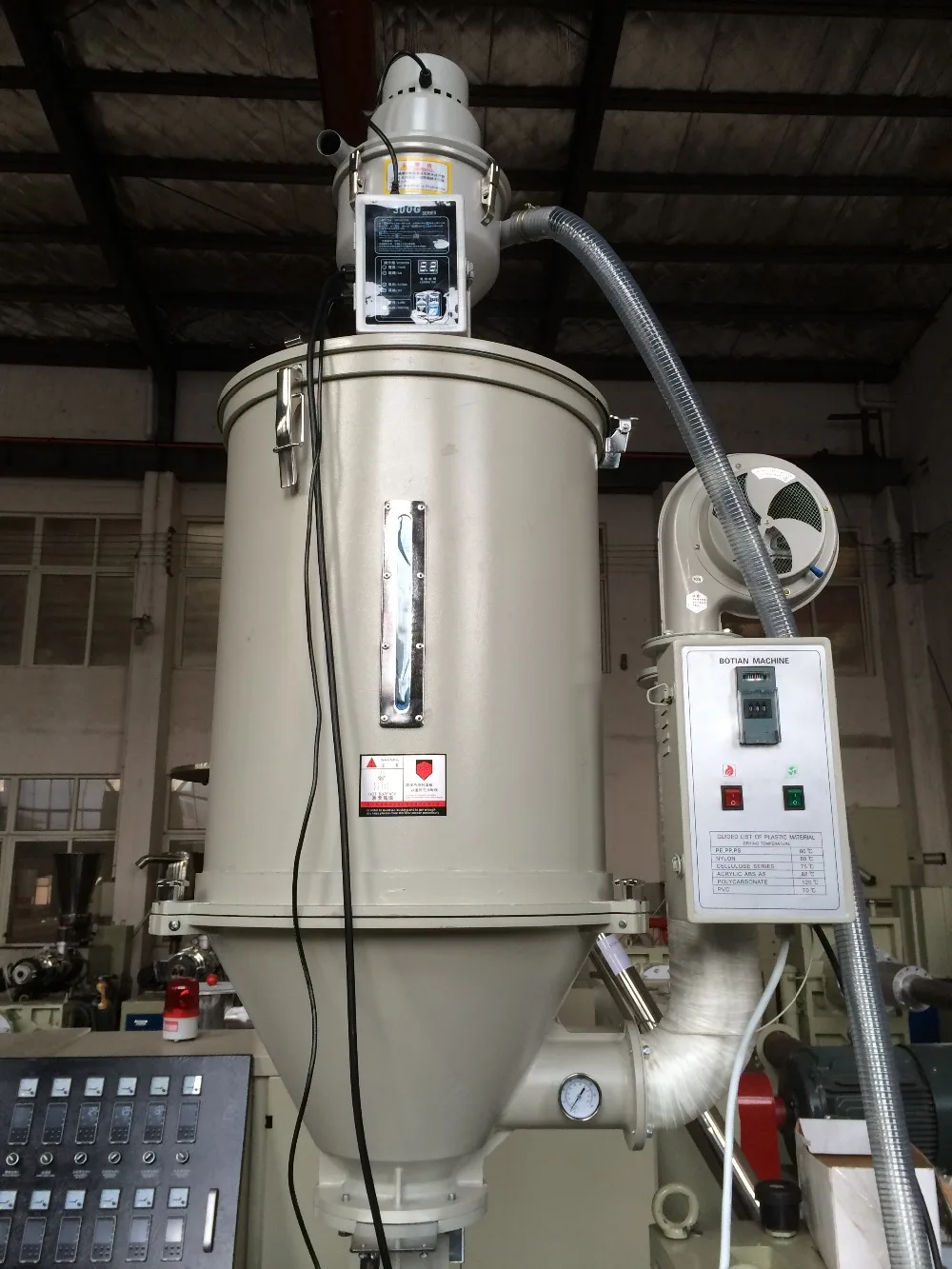

Vacuum Loader Drying Hopper
It will load the materials automatically.Drying hopper will
dry materials during feed.

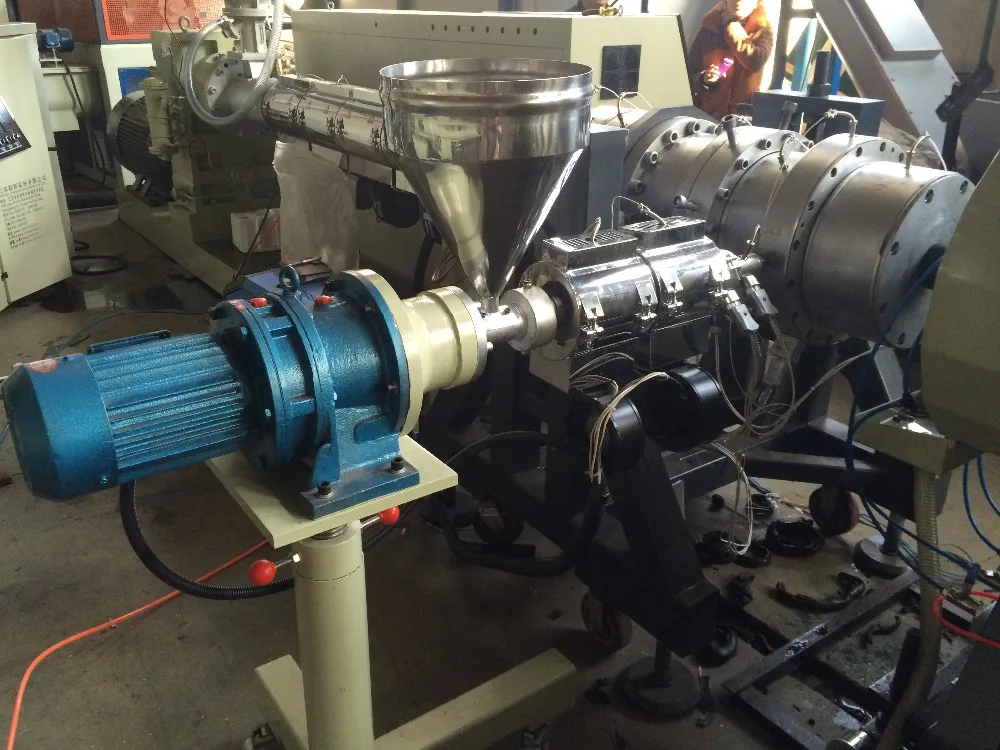

Extruder and Co Extruder
for making the mark color line.
Color can be red or blue depends on choice.

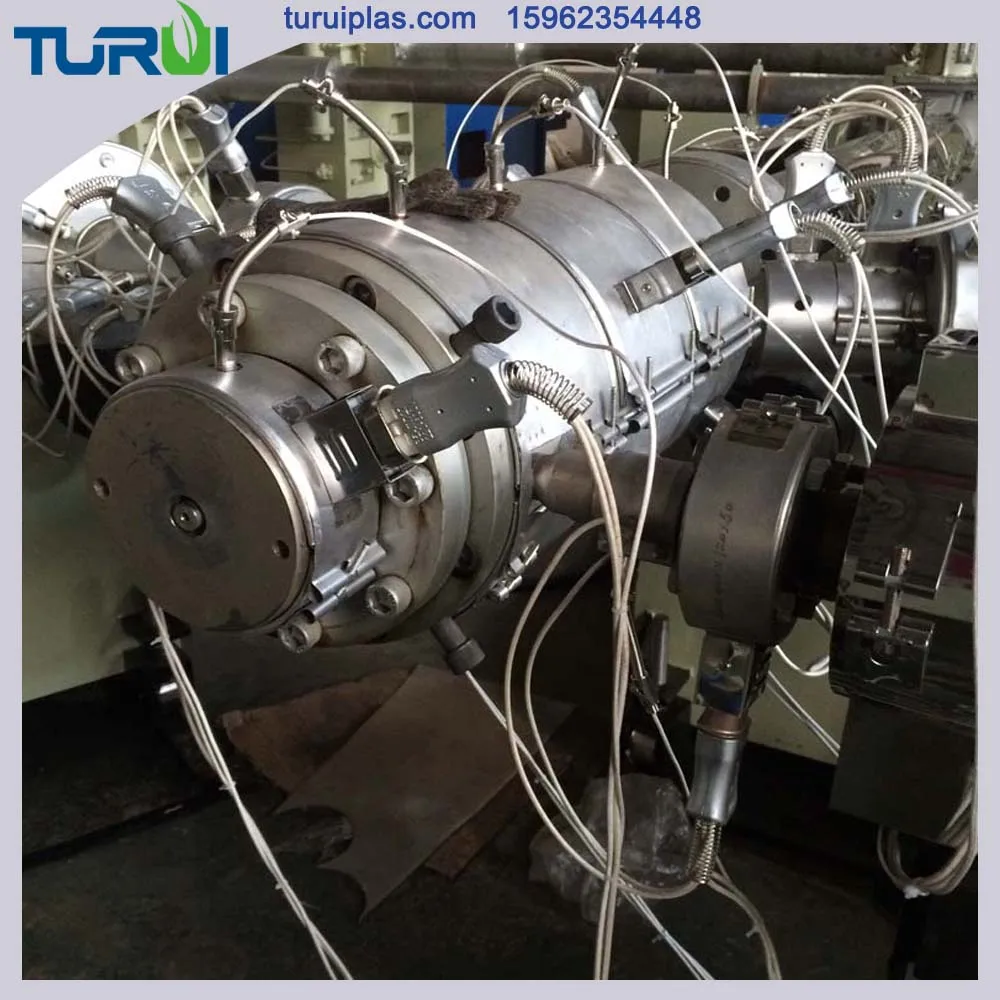

If you tell us your pipe range,we can offer you suitable moulds size.like 20-63 75-160.160-315 315-630
VACUUM TANK FOR FORMING

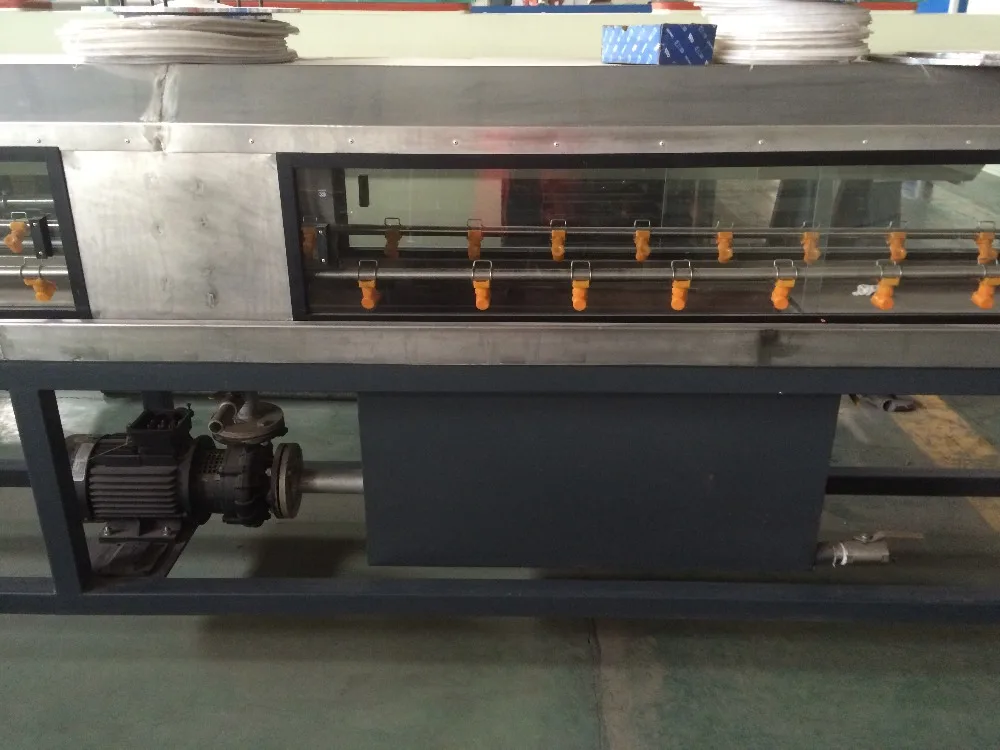

wATER TANK FOR COOLING

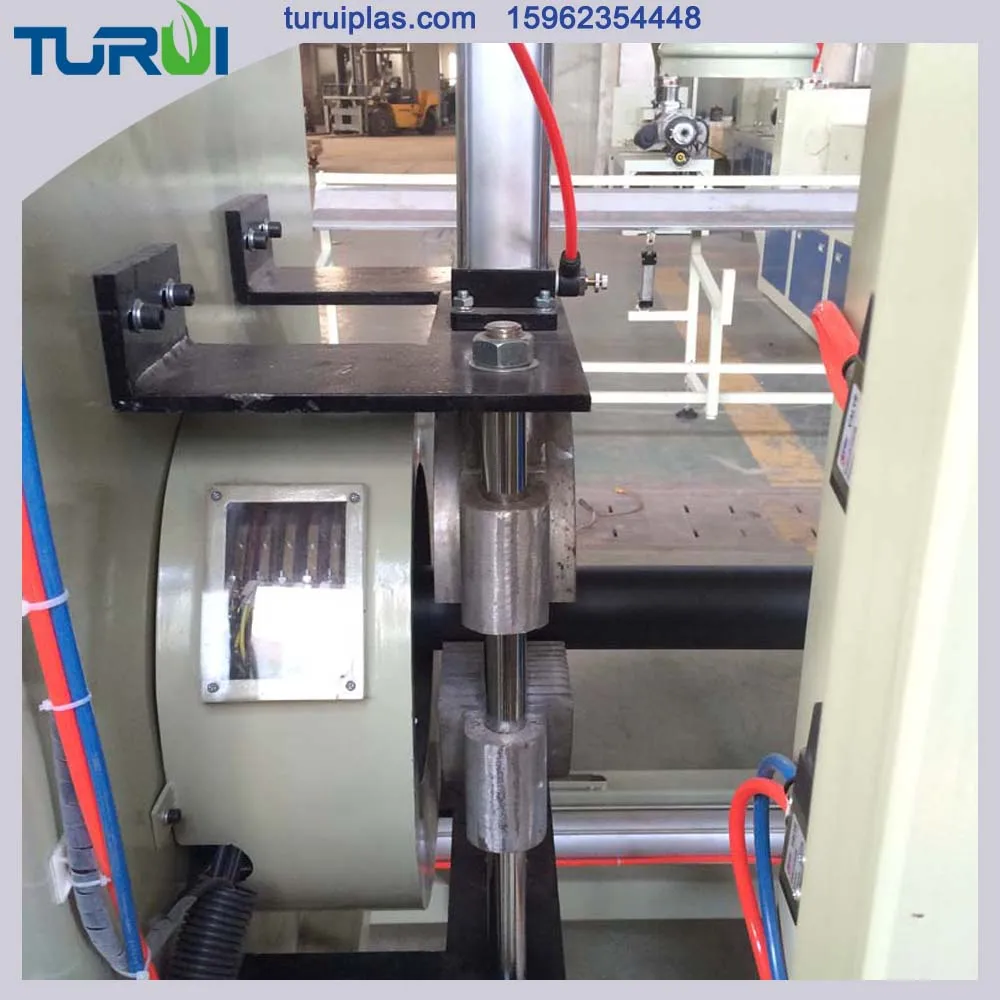

Planetary Cutter or No dust cutter for choice

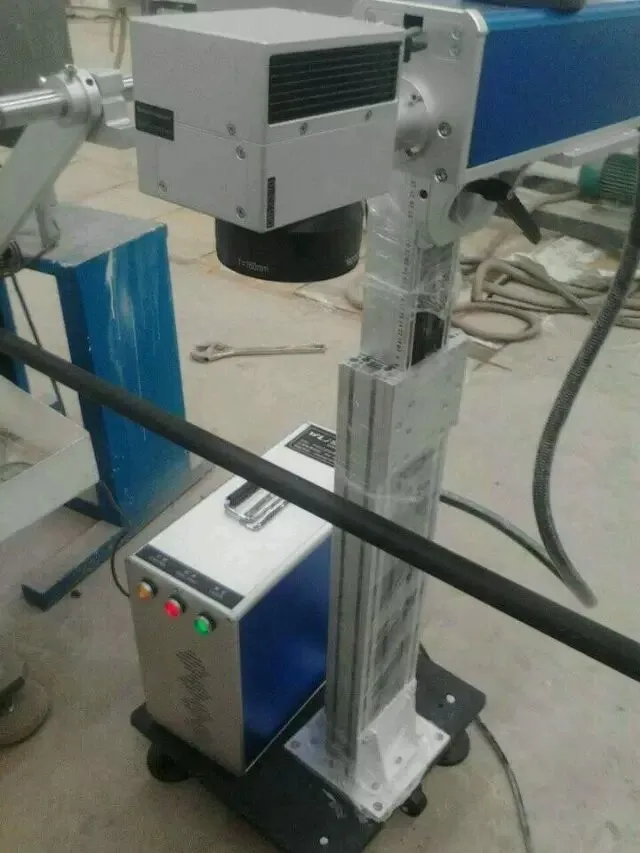

If you want to print the dates and Size,Pressure On PE pipe.
you may need Ink Jet Printer or Laser printer,

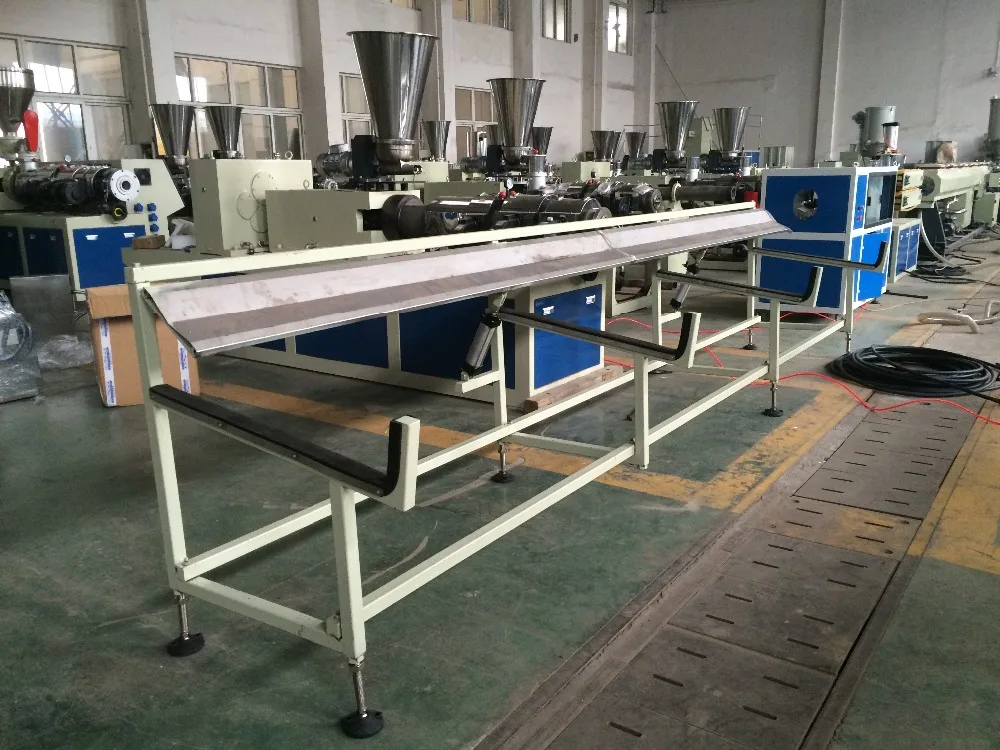

After Cutting The pipes will automatically be pushed on the stacker and fall on the plates.You can take it and package it.

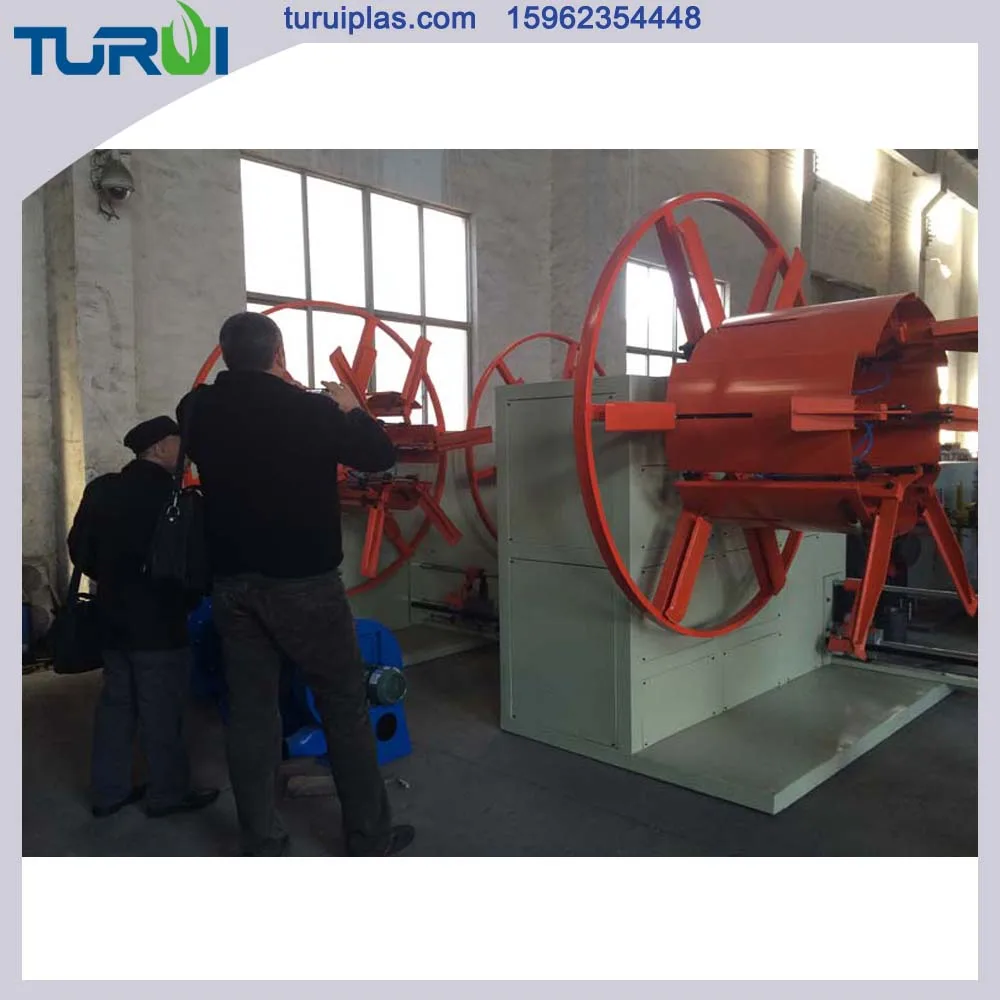

PE pipes can be windered on winder machine. We have single disk and double disk for choice.
Specification of Equipment List
Automatic feeding machine
With drying function
37/55 KW for choice
One mould suitable for 16-63 or 63-160 etc.
Vacuum pump 2.2KW,3KW
Haul off machine
For driving the pipe
Cutting Or Winder
Cut pipes or Winder pipes in roll
Features: Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable. Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.
You may need

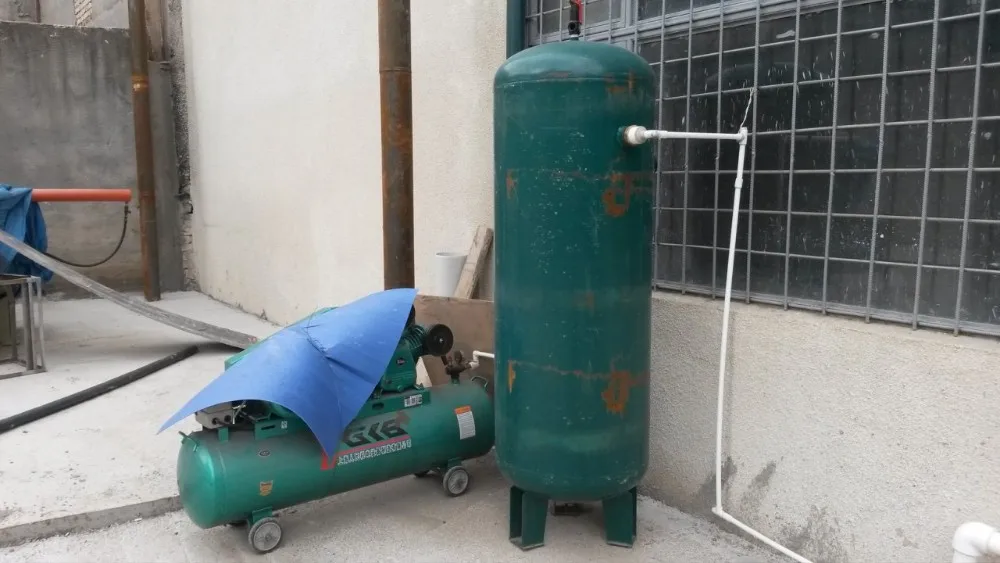

Air Compressor and Buffle tank.
It is for offer air for pneumatic cutting,haul off machine,stacker

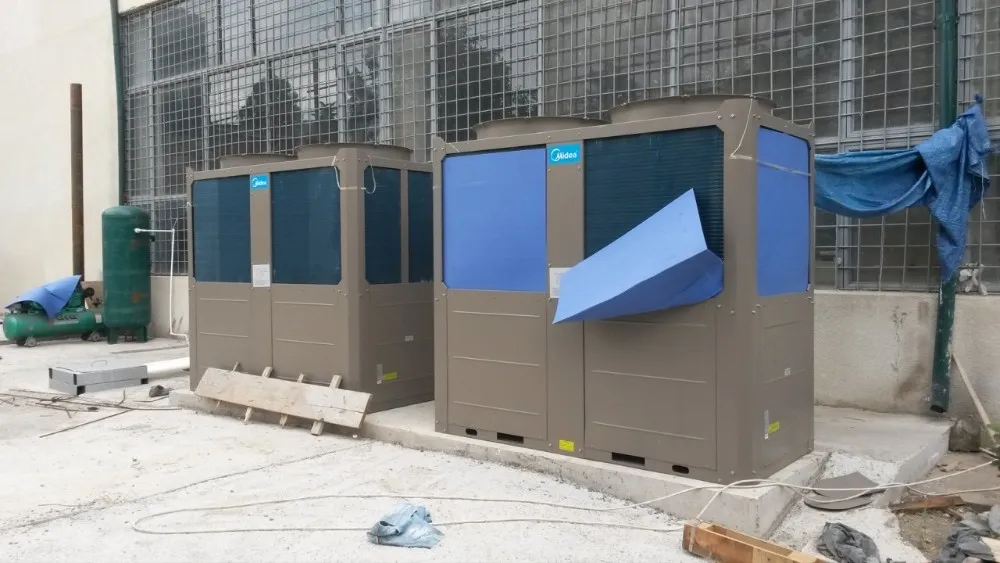

It offers stable cooled water for
water cooling tank,cool down the pipes.

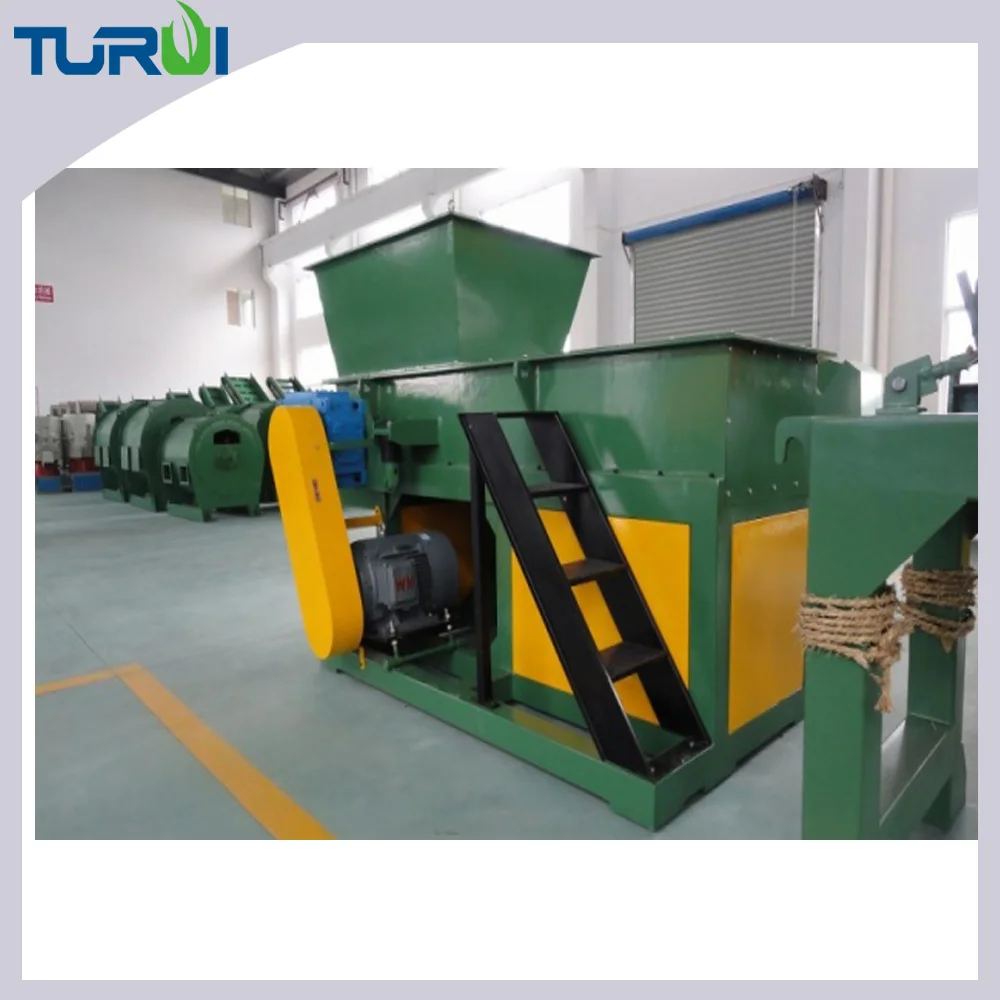

Shredder For recycling.
In production,some failed scraps pipes can be recycled by shredder and crusher,and can be add into production.

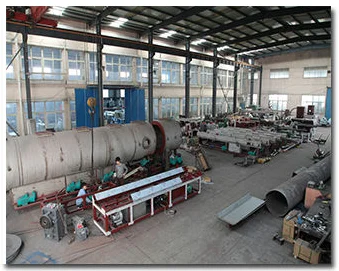

Factory and workshop
Turui company,Located in Zhangjiagang city,Jiang Su.
150Km away from Shanghai.
Covered 2000SQM area.
Advanced precision process workshop,Assemble workshop.
High Tech Mechanical Design and Innovation creativity ensured the quality of products.
Packaging & Delivery
Packaging Details: Wooden Case,One 40Feet container could load one production line.
Delivery Detail: 30Days
Q: What price terms you offer?
A: FOB, CIF, EXW and other price terms based on your kind request.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Daxin Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport!
